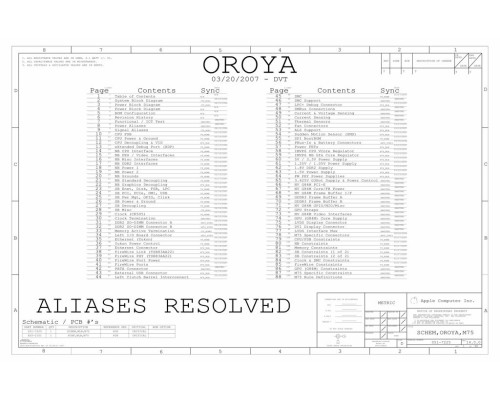

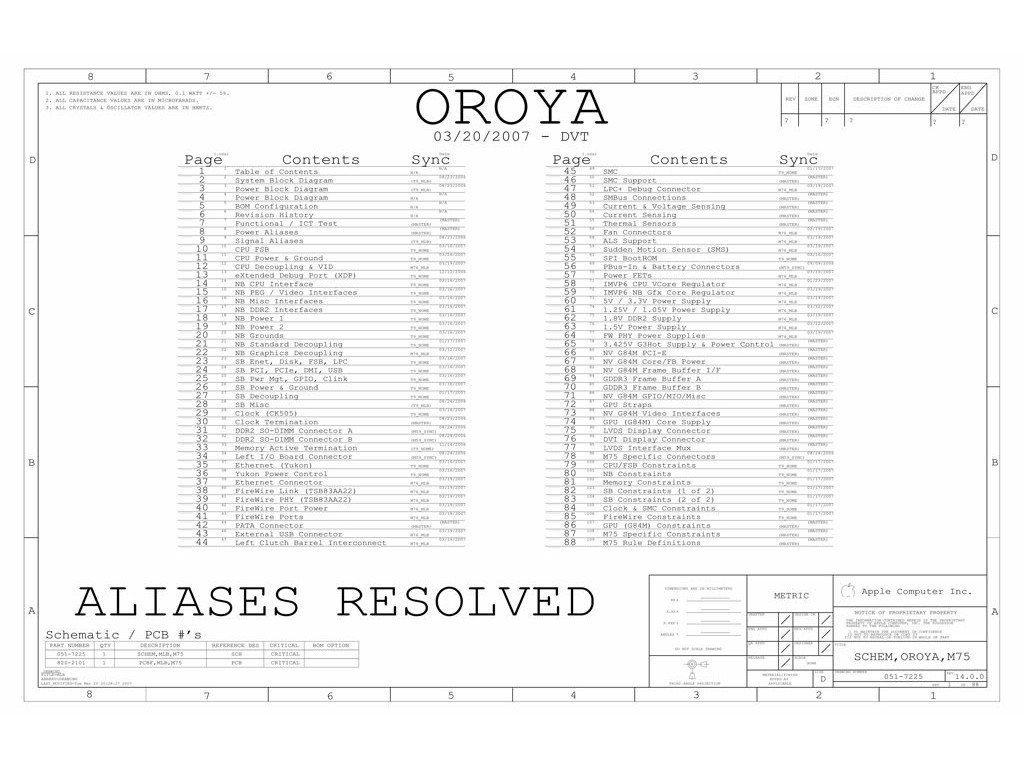

The motherboard schematic for Apple MacBook Pro A1226 laptop/notebook, OROYA DVT
CPU: 2.? GHz Core ~1.2V
North Bridge: NB-GMCH Core 1.05 – 1.25V
South Bridge: SB-ICH8 Core 1.05V
Title: SCHEM,OROYA,M75
DRAWING NUMBER: 051-7225
PART NUMBER: 820-2101
Format: PDF
APPLE MACBOOK PRO A1226 SCHEMATIC – 820-2101 – SCHEM,OROYA,M75
820-2101 051-7225-
$7.00
